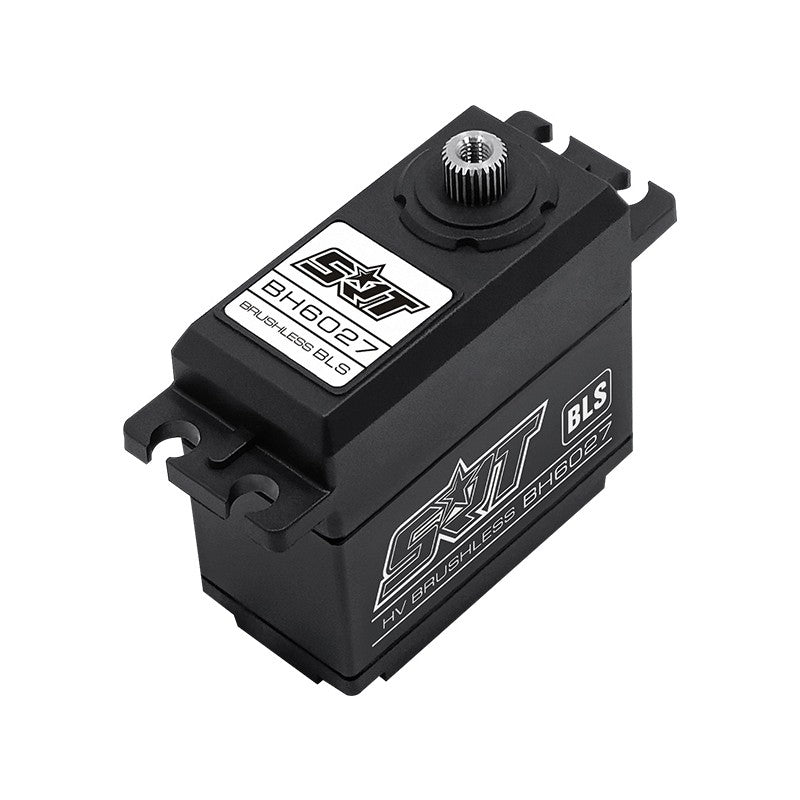

SRT BH6027 HV BL Servo 25KG - 0.08 sec at 7.4v - Semi-Metal Case

High-quality, high-performance, high-voltage digital servo, suitable for a variety of 1/10 & 1/8 applications suitable for a "Standard" size servo.

Features:
•1/8 Electric & Nitro, 1/10 Off-Road & Touring Car
•incredible efficiency and low power consumption
•Aluminium case for good heat dissipation
•NMB dual main bearings
•25T output shaft
•1-Year Limited Warranty

Specification:
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
Control system: pulse width control
Working frequency: 1520μs / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0v): 0.11 sec/60 degrees at no load
Operating speed (7.4v): 0.08 sec/60 degrees at no load
Operating speed (8.4v): 0.075 sec/60 degrees at no load
Stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
Stall torque (7.4v): 25.0kg.cm (347.2 oz/in)
Stall torque (8.4v): 27.0kg.cm (375.0 oz/in)
Potentiometer drive: direct drive
Dimensions: 41.3x20.5x38.3 mm /1.63x0.80x1.51 in
Wight: 69.0g (2.43 oz)
Connector wire length: JR plug, 250 mm long
